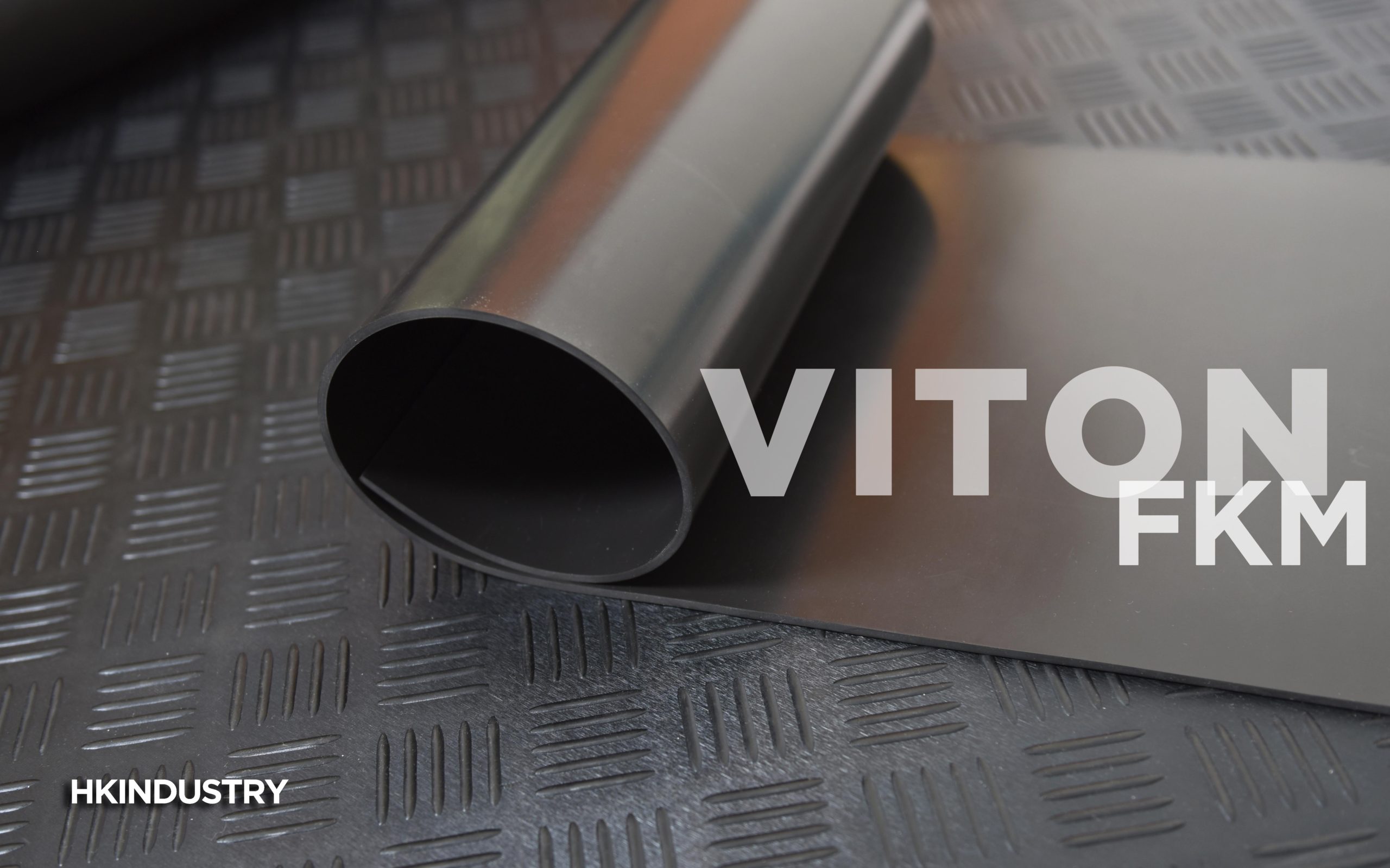

Viton Rubber Sheet
Viton Rubber Sheets also called Fluoro Elastomer Rubber and FKM Rubber, possesses a good flame resistance. Viton rubber resistance to most solvents and chemicals give long service time, also have excellent resistance to high temperatures, ozone, oxygen, mineral oil, synthetic hydraulic fluids, fuels.
Applicatioin
Viton Rubber gasket can be used all field. Based on its molecular structure advantages, it almost provide excellent performance than other sheet rubber.
Technical Data
| Item | Specific Gravity |
Hardness |
Tensile Strength |
Elongation at break |
Working Temp. |
|---|---|---|---|---|---|
| HK775195L | 1.95g/cm³ | 75±5 ShoreA | 6MPA | 150% | -40 ~ +210°C |
| HK775195H | 1.95g/cm³ | 75±5 ShoreA | 7MPA | 180% | -40 ~ +250°C |
Specification
| Thickness | Width | Length | Color | Insertion | Surface |
|---|---|---|---|---|---|
| 1-10mm | 1/1.2/1.4m | 5-10m | Black, Red, Green, Etc. | 0Ply | Smooth |
